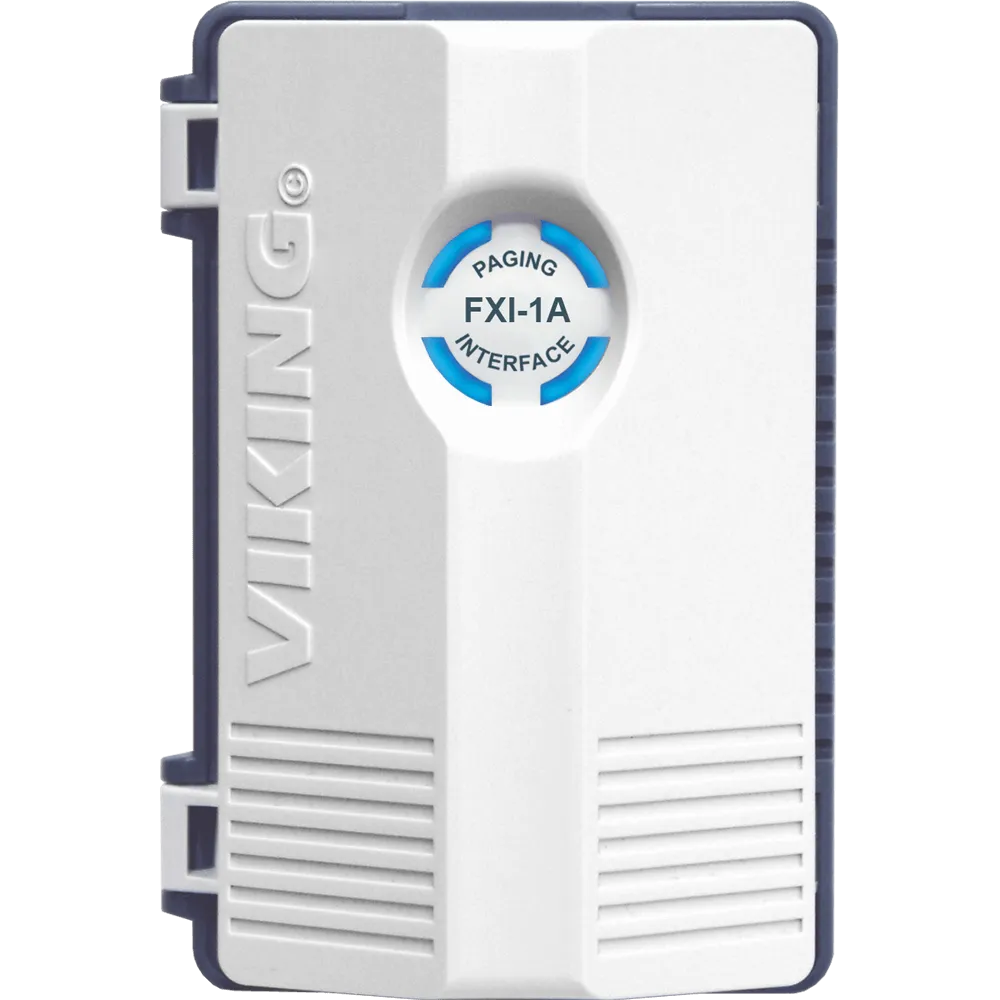

Universal Telecom / IP Paging Interface allows one to provide paging from almost any type of phone system instead of from a microphone. Paging interface can also provide background music and electronic night bell over the audio system.

Features:

• 800 Hz pre-announce page tone (on/off)
• Floating 600 ohm paging output with volume control
• Normally open or closed relay for external paging amp activation or interfacing paging amp with external background music source
• Calling party control (CPC) detection for immediate disconnect
• Compatible with 24 to 48 volt FXS operation
• Busy signal detect disconnect
• 2.5 to 5 second VOX silence disconnect timer
• Programmable VOX trigger sensitivity
• 16 or 36 second default disconnect timer
• Screw terminal block connections
• 30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
• Up to 6 units can be powered from one adapter in FXO or VOX mode
• No power supply required in FXS interface mode
• Suppresses background music during paging
• Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
