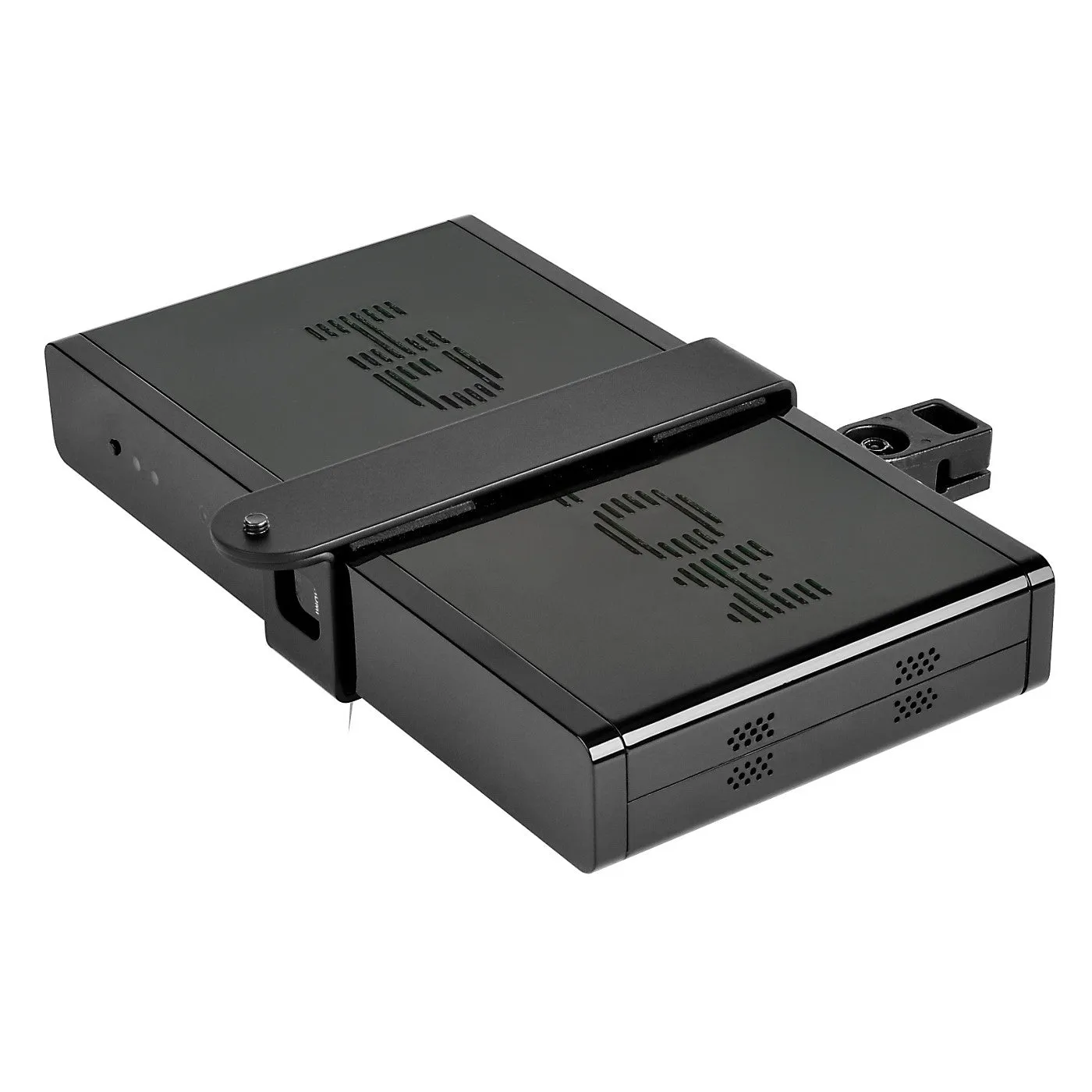

The PeerAir Wireless Projector Integration Kit from Peerless Industries allows you to stream 1080p and passive 3D content wirelessly from portable devices such as laptops, smartphones, and media players to a mounted projector located in a hard to reach spot. The receiver is designed to mount to projector mounts that feature a Spider Universal Adapter Plate (sold separately). The integration kit includes both a receiver and transmitter and eliminates the need to run unsightly cables and opens up new display placement opportunities. The kit utilizes the IEEE802.11n Wi-Fi standard and has a range of up to 131 feet. The kit also comes with a choice of security and non-security hardware options for installation into residential or commercial settings. The item offers easy installation with a plug-and-play wireless set-up.
- Compatible with Peerless-AV projector mounting solutions using the Spider Universal Adapter Plate (sold separately)
- Flexible installation anywhere along the 360° circumference of the Spider Universal Adapter Plate
- Streams Full HD 1080p and passive 3D content wirelessly to a mounted projector through walls, floors or ceilings
- Horizontal adjustability to aesthetically accommodate virtually any projector size
- Includes security and non-security wireless component installation hardware
- Includes an IR extender for enhanced remote control of AV components
- Quick, easy installation with a plug-and-play wireless set-up
- The open air design is ideal for wireless component ventilation
- Also supports HDS200-R HD Flow Pro Wireless Multimedia Receivers
General Information | |
Manufacturer | Peerless Industries |
Model Number | HDS-PWK-200 |
Specifications | |
Supported Resolution | 480i/p, 720p, 1080i and 1080p (24/30/60 fps) |
Wireless Technology | Supporting IEEE 802.11n: OFDM |
Frequency | 5.15-5.25 GHz |
Range | 131' (40 m) |
Video Streaming Latency | <30ms |
Antennas | 2 x internal antennas, MIMO interface |
Wired LAN | RJ-45 LAN port, direct connection (LAN cable) |
Transmitter Input ports |
|
Receiver Output ports |
|
IR Extender Port | 1 |
IR Flashers | 3 |
IR Window | Yes |
Audio | 2 ch. linear PCM, analog, 48 kHz 16-bit ADC |
Encoding | H.264 Baseline Profile with Level 4.2, HDCP Compliant |
Security | 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP AES |
Finish | Scratch resistant fused epoxy |
Power Consumption | 2 A at 12 VDC |
Operating Temperature | 32-104°F (0-40°C) |
Dimensions |
|
Weight | 3.75 lb (1.7 kg) |
