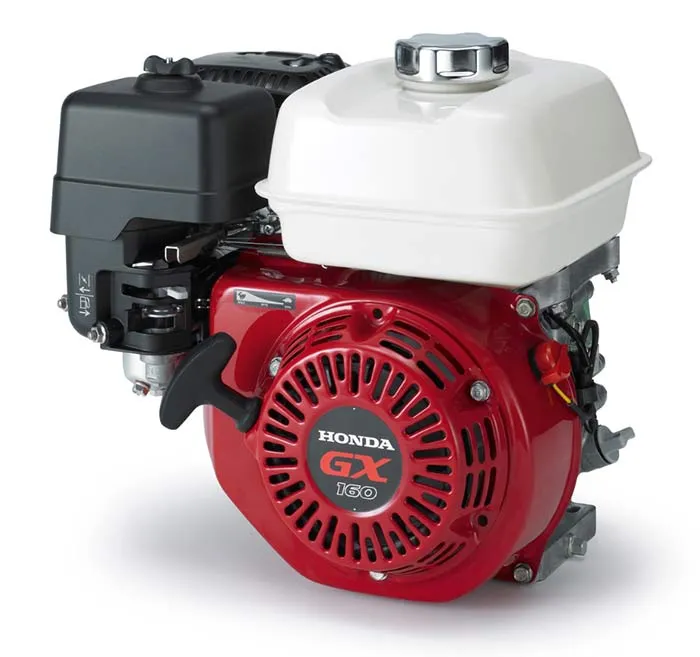

Name: Honda GX160 Engine 6:1 Reduction
SKU: 158147

Features:

GX160, 5.5HP max
Engine is easy starting OHV design
6:1 reduction box, ideal for spray pumps
Output shaft runs @ 660 rpm max
Max net torque 10.3Nm @2500rpm
3/4” keyed shaft
Bore x Stroke – 68 x 45
Displacement 163cm³
Compression ratio 8.5:1
Cast iron bore
Recoil start
3.1L fuel capacity
Fuel consumption; 1.4L/hour @3600rpm
Dimensions (LxWxH); 312 x 362 x 346mm
Weight 15kg

Efficient OHV combustion design delivers high torque and power while reducing fuel consumption.
Solid reliable power & performance from the world’s most innovative engine maker.

EASY TO USE AND MAINTAIN

A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

And with a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter your engine will be easy to upkeep.

QUALITY AND PERFORMANCE COME STANDARD

Honda’s GX series engines are legendary for superior reliability and performance and the GX160 is no exception. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

Being the Flagship model in Honda's world-renowned GX Engine range, the GX160 can be used in all sorts of applications. Pressure washers and construction/industrial equipment, generators and commercial lawncare equipment; its uses are wide ranging.

FUEL EFFICIENT WITH HIGH OUTPUT

The GX160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
